CARDANIC TYPE CONVEYORS

CARDANIC TYPE CONVEYORS

  • Product Category: KONVEYÖR SİSTEMLERİ

Conveyor Systems are one of the most important parts of the lines used in automatic coating plants. Our conveyor systems, which carry the parts which will be painted in meters per day and kilometers per year, play an important role.

Cardan type conveyors are trolley models consisting of 4 bearing groups moving in a closed rail. These types of conveyors are indispensable on lines with their vibration-free movement, automatic lubrication feature and good appearance.

  • Cardan type conveyor is based on moving the cardan chain in three axes on the cardan rail.
  • Cardan type drive unit, top caterpillar type or side gear torque safe.
  • The pitches between chain hangers are 400 mm and its multiples.
  • Thanks to the central lubrication unit on the system, the chain bearings automatically lubricate at the desired time interval.
  • Torg limiter is used to protect the system from jamming and forcing of the drive units to protect the conveyor system.
  • The bearings mounted on the chain are capable of operating at 250 degrees.
  • Conveyor chain tensioning system is made with spring or screw.
  • Cardan conveyor rail is specially bent from sheet metal.
  • In long line conveyor systems, more than one drive unit is used, in such systems a synchronized operation is provided between the drive units.
  • There are three types according to the needs.

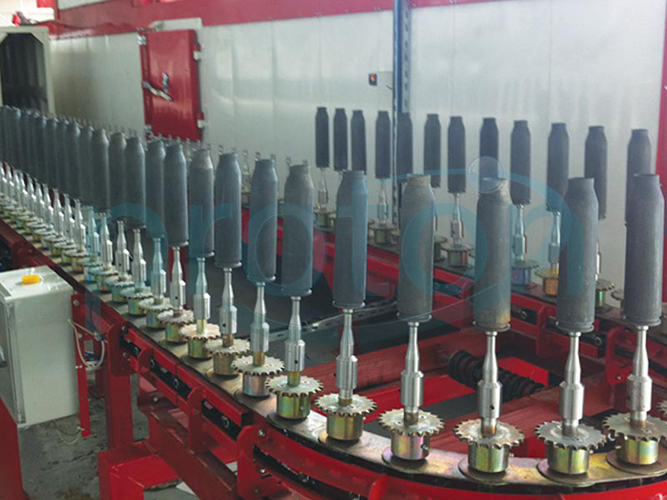

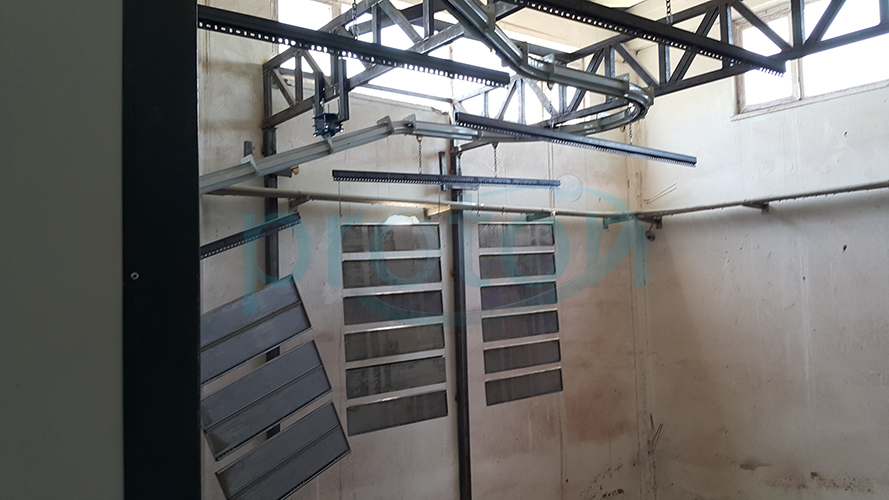

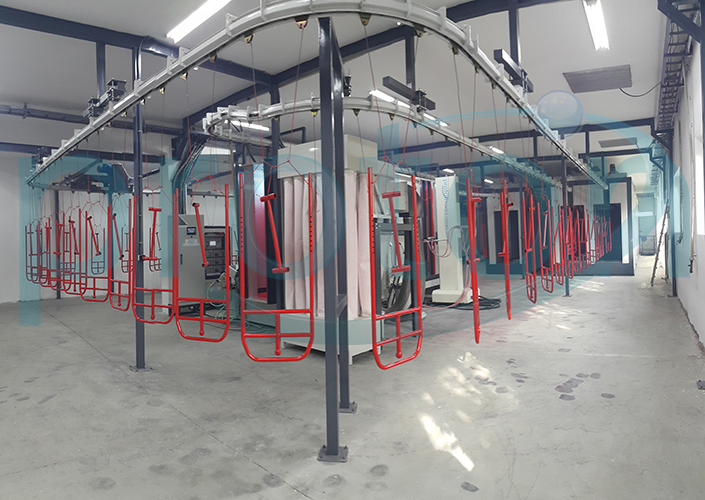

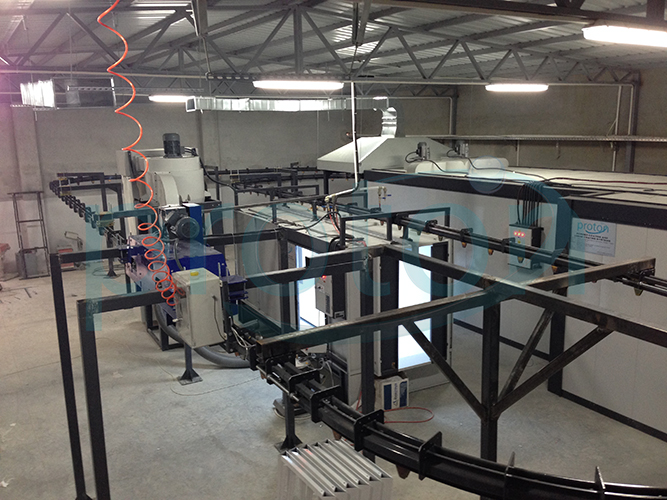

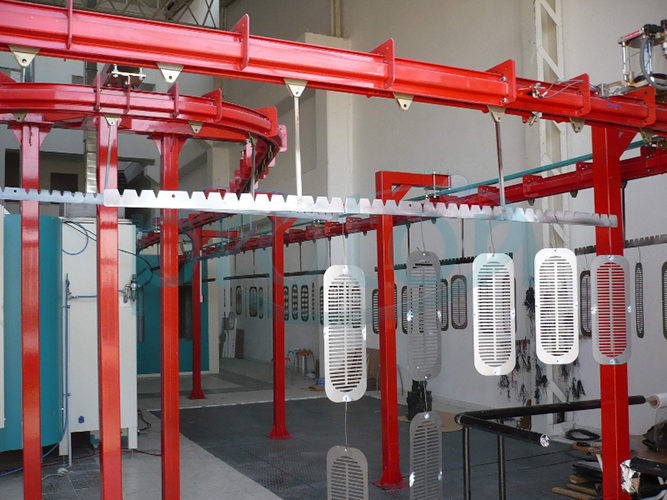

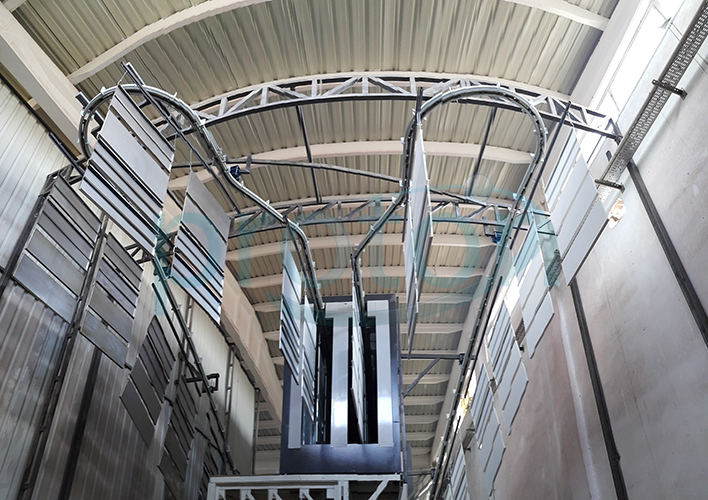

Product Gallery
